math.OCOct 26, 2026

Balanced Active Subspaces for Optimal Control via Trajectory Optimization

Authors: Emmanuel S. Ameh, Samuel E. Otto

Organizations: Department of Chemical and Biomolecular Engineering · Department of Mechanical and Aerospace Engineering

Read PDF
Ask AI
Cite

Copy citation

DOINot available for this paper

Abstract

The curse of dimensionality associated with solving the Hamilton-Jacobi-Bellman equation for the value function remains a key obstacle for real-time optimal feedback control of high-dimensional nonlinear dynamical systems. This is especially severe in aerospace applications such as relaminarizing unsteady turbulent flows and recovering from aerodynamic stall where nonlinear dynamics play a significant role. We introduce Balanced Active Subspaces for Optimal Control (BASOC), a model reduction framework which seeks to find directions in state space along which the value function is most sensitive, and the distribution of states exhibits maximum variance along optimal trajectories. BASOC leverages trajectory optimization and the Pontryagin minimum principle to obtain state and co-state (value function gradient) data along locally optimal trajectories for constructing state and gradient covariance matrices. Balancing these matrices provides an oblique projection for approximating the value function, which can also be used to construct reduced-order models and surrogate feedback control laws. We show that for linear-quadratic optimal control problems, BASOC becomes equivalent to a snapshot method for initial condition balancing of the optimally controlled closed-loop realization. The framework is demonstrated on a nonlinear three-dimensional system where POD and balanced truncation are known to perform poorly, and on the nonlinear complex Ginzburg-Landau equation to demonstrate feasibility for larger-scale systems.

Figures & tables

 X=1NIC[X~(1)⋯X~(NIC)]Y=1NIC[Y~(1)⋯Y~(NIC)].X=\frac{1}{\sqrt{N_{\mathrm{IC}}}}[\widetilde{X}^{(1)}\cdots\widetilde{X}^{(N_{\mathrm{IC}})}]\qquad Y=\frac{1}{\sqrt{N_{\mathrm{IC}}}}[\widetilde{Y}^{(1)}\cdots\widetilde{Y}^{(N_{\mathrm{IC}})}].
Algorithm 1 Balanced Active Subspace (BASOC) Projection Algorithm
Figure 1: Comparison of the value function along optimal trajectories plotted in reduced variables selected by different methods for the challenging nonlinear toy model.
Figure 2: In (a) we show the uncontrolled CGL equation exhibiting a large downstream response due to upstream disturbances, and in (b) we show the controlled CGL equation under optimal control forcing upstream.
Figure 3: Remaining fraction ∑ℓ=r+1nσℓ2/∑ℓ=1nσℓ2\sum_{\ell=r+1}^{n}\sigma_{\ell}^{2}/\sum_{\ell=1}^{n}\sigma_{\ell}^{2} of the total squared BASOC singular values as a function of the number rr of retained modes for the CGL equation.

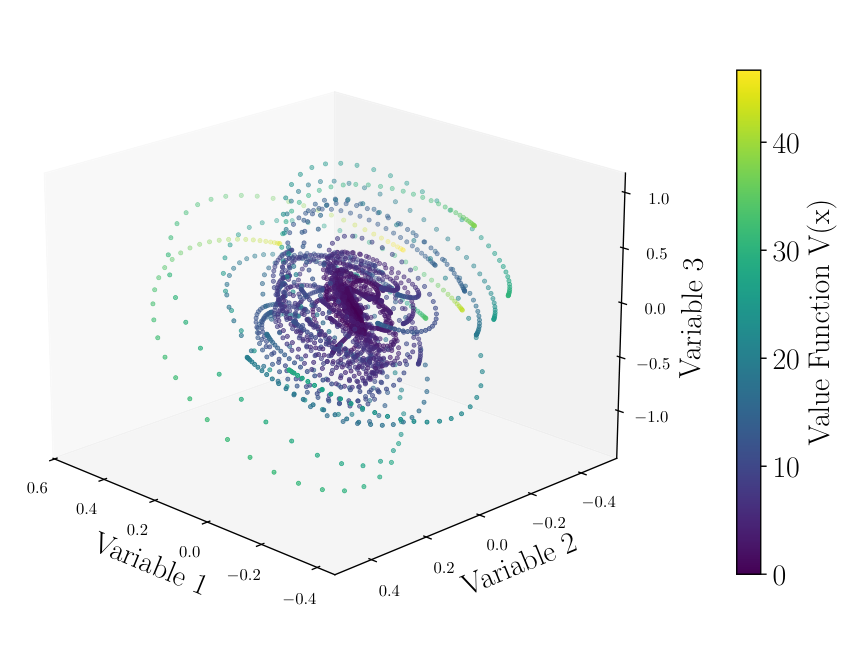

Figure 4: Visualization of the value function for all trajectories on three-dimensional subspaces for the different methods. The colorbar indicates the value function V(x)V(x) .
Figure 5: Closed-loop full-state feedback using surrogate control laws for the challenging nonlinear toy model: (a) non-extrapolated test initial conditions; (b) extrapolated test initial conditions.
Figure 7: ROM output prediction for the nonlinear toy model: (a) prediction for a single test trajectory; (b) normalized squared output prediction errors along optimal trajectories for extrapolated test initial conditions. Similar results are obtained for non-extrapolated initial conditions.
Figure 8: Normalized squared state-forecast error across optimal test trajectories for the nonlinear CGL equation for different reduced dimensions rr .
Figure 9: Open-loop reduced-order state estimation using an EKF-ROM. (a) Challenging nonlinear toy model. (b) CGL equation model.
Figure 10: Output-based closed-loop feedback control for the challenging nonlinear toy model for (a) non-extrapolated and (b) extrapolated test initial conditions.
Figure 11: Output-based closed-loop feedback control using the EKF and surrogate control law for the CGL equation model.
Appendix figures & tables1 asset

Supplementary material from the paper’s appendix.

Appendix

Figure 12: Convergence of the cost function and its gradient norm during trajectory optimization for (a) the nonlinear toy model and (b) the CGL model.
